How to Fit a Fridge in a Jimny XL 5-Door (What Actually Works)
Fitting a fridge in a Jimny XL 5-door starts with getting a flat, stable floor — not with picking the fridge. This guide covers which 12V fridges actually work with the ExploreSetups storage system, how to position them for both solo and two-up touring, and what power you need to run one off-grid.
One of the most common questions from Jimny XL owners is: what fridge actually fits? It's a fair question. The JC74 cargo area isn't huge, the rear seats create an uneven floor, and most fridge guides are written for Landcruisers or Defenders — not a compact 4x4 with specific width constraints.
This post covers exactly what works, what doesn't, and how the ExploreSetups storage system makes fridge integration genuinely straightforward.
The problem with fitting a fridge in a stock Jimny XL
Without a flat floor, a fridge sitting in the back of a stock Jimny XL is a problem waiting to happen. The stepped rear seat mechanism means anything you put back there is either at an angle, rattling around, or blocking access to whatever's underneath it. There's also no good way to secure a fridge properly — which is a safety issue, not just an inconvenience.
The first step isn't choosing a fridge. It's getting the floor sorted.
Why the storage system needs to come first
The ExploreSetups false floor creates a flat, stable base across the entire rear cargo area. On top of that, the drawer system provides a solid, level surface specifically designed to hold a 12V fridge. Built from 15mm plywood — engineered to handle the weight and vibration of a running fridge over rough terrain.
Once the system is in, fridge placement is straightforward. You have two main options depending on the fridge style you choose.
Option 1 — Upright 12V fridge on top of the drawers
An upright fridge sitting on top of the drawer system is the cleanest setup for most touring use cases. Easy top-loading access, good compressor airflow, and the fridge sits at a comfortable height when the tailgate is open.
The drawer top surface is approximately 1110mm wide and 460mm deep (without platform), giving you a solid footprint to work with.
| Fridge | Type | Dimensions | Notes |
|---|---|---|---|
| Kings 60L Upright | Upright 12V | 520mm D × 450mm W × 530mm H | Personally tested. No longer manufactured — available secondhand. |
| Gecko 57L Portable Bar Fridge | Upright 12V | Similar to Kings 60L | Not personally tested — confirm dimensions before purchase. |
| Dometic NRX 60C | Upright canopy fridge | Similar footprint | Not personally tested — confirm dimensions before purchase. |
Always confirm exact dimensions against the measurements listed on the false floor product page before purchasing a fridge.

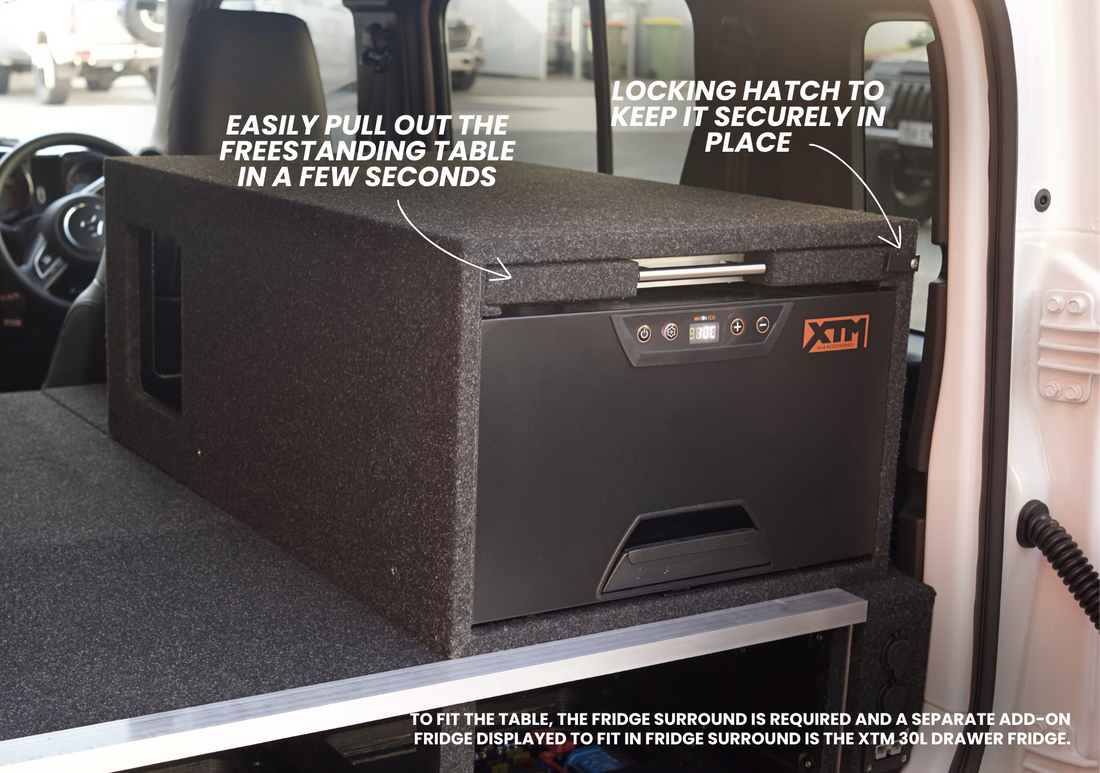

Option 2 — 30L drawer fridge with the Fridge Surround add-on
If you want to keep a rear passenger seat while still running a fridge, the 30L drawer fridge option is the way to go. The optional Fridge Surround add-on is a custom housing that integrates a 30L drawer-style fridge cleanly into one side of the setup, leaving one rear seat fully usable.
The recommended fridge for this configuration is the XTM 30L Drawer Fridge Freezer (available from BCF), with dimensions of 250mm D × 478mm W × 734mm L. The surround can be positioned on either side, and a pull-out table can be added on top for extra functionality at camp.
Powering the fridge
The ExploreSetups false floor includes a cavity for a 50mm slimline lithium battery, making the base setup power-ready. The Complete Setup + Power includes a Cangoee 110Ah Slimline Lithium with a 20A DC-DC charger, Victron MPPT solar controller, and a full 12V output panel with Anderson connectors specifically for high-draw accessories like fridges — more than enough to run a fridge for several days without solar, and indefinitely with it.
Buy the storage system first
We always recommend installing the storage system first before purchasing a fridge. Once it's in, you can take accurate measurements of your actual available space and confirm fit before spending money on a fridge. Dimensions can vary slightly between vehicles depending on trim and existing accessories.
View the complete storage setup →
What size fridge fits on top of the drawers in a Jimny XL 5-door?
The drawer top is approximately 1110mm wide and 460mm deep. Upright 12V fridges up to around 60L work well. The Kings 60L Upright Fridge (520mm D × 450mm W × 530mm H) has been personally tested and fits. Always confirm dimensions against the false floor product page measurements before purchasing.
Can I keep a rear passenger seat and still run a fridge?
Yes. The optional 30L Drawer Fridge Surround add-on allows you to run a drawer-style fridge on one side while retaining one rear passenger seat. The recommended fridge for this configuration is the XTM 30L Drawer Fridge Freezer.
What power source do I need to run a fridge in the Jimny XL?
The ExploreSetups false floor includes a cavity for a 50mm slimline lithium battery. The Complete Setup + Power includes a Cangoee 110Ah Slimline Lithium battery, 20A DC-DC charger, Victron MPPT solar controller, and a pre-wired 12V panel with Anderson outputs — everything you need to run a fridge fully off-grid.
Does the fridge come with the storage setup?
No — the fridge is purchased separately. ExploreSetups provides the storage platform, drawers, and optional fridge surround housing. We recommend installing the storage system first and measuring your available space before buying a fridge.
Is this system suitable for the Suzuki Jimny 3-door?
No. The system is engineered exclusively for the Suzuki Jimny XL 5-door (JC74 model). It will not fit the 3-door Jimny or any other variant. ExploreSetups is an independent business and is not affiliated with Suzuki Motor Corporation.
