Complete Storage Setup suitable for Jimny XL 5-Door

This full rear setup has been purpose-built for the Jimny 5-door (XL), transforming your load space into a clean, level, and highly functional platform. Whether you're touring, camping, or just need everyday organisation, this kit covers all bases—starting with a solid false floor that bolts into factory points and houses optional power setups like a Cangoee 110Ah Slimline Lithium battery*.

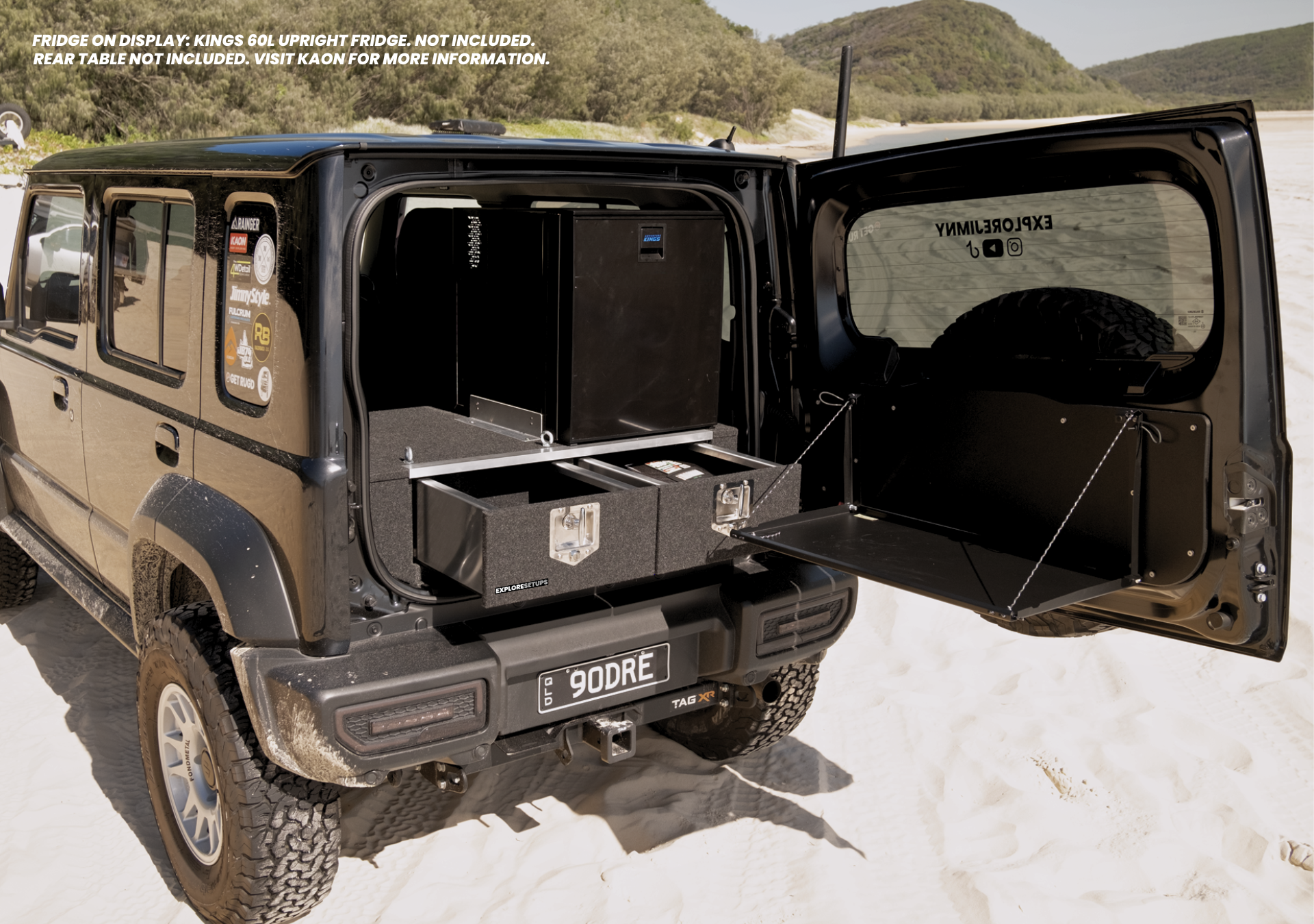

On top of that sits the dual drawer system, with smooth-sliding polyethylene runners, lockable stainless steel latches, and a rugged charcoal carpet finish. The included wing kit closes off the sides to create a seamless deck across the rear, while still allowing access to the wheel arch voids for extra gear stowage.

To complete the setup, the half seat platform bolts directly to the rear drawers, giving you the option to extend your flat surface forward. Install one side and keep a rear seat, or bolt in both for a fully flat load area from tailgate to front seats—ideal for sleeping setups or long-haul touring builds.

This is the ultimate plug-and-play storage system for the Jimny XL, with no cutting, drilling, or guesswork required. Watch the complete installation video step by step here.

Designed by a Jimny owner, for Jimny owners.

*This system does not feature a battery or fridge system. To purchase the complete system + Cangoee 110Ah Slimline Lithium battery, see this product page.

Total system weight approx. 32kg.

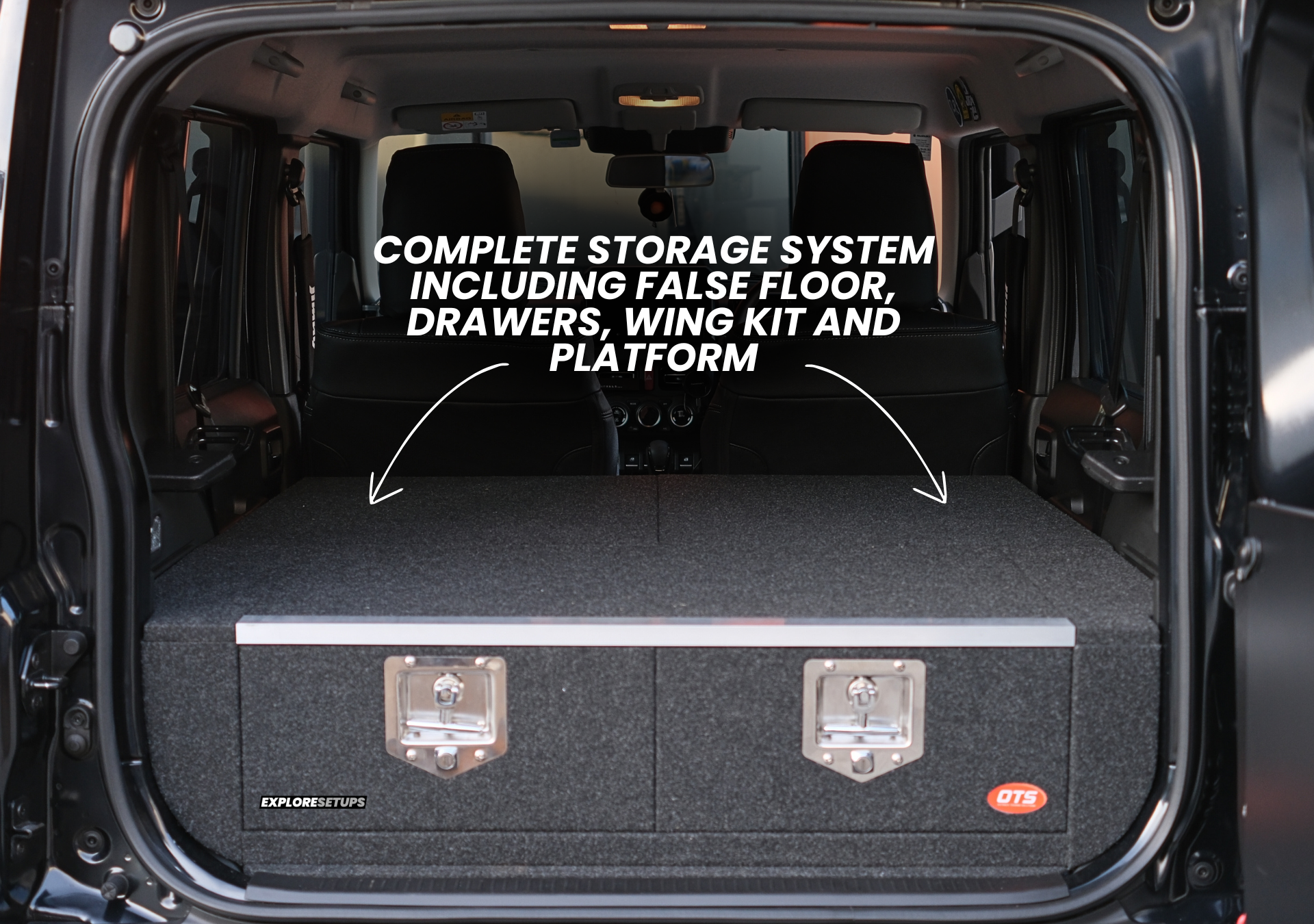

• All-in-one system: Includes false floor, drawer system, wing kit, and half seat platform for a complete fit-out.
• Vehicle-specific fit: Engineered for the Jimny 5-door XL with precise alignment to factory mounting points.

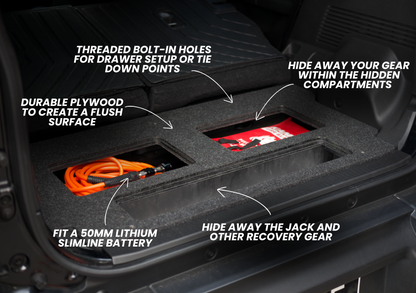

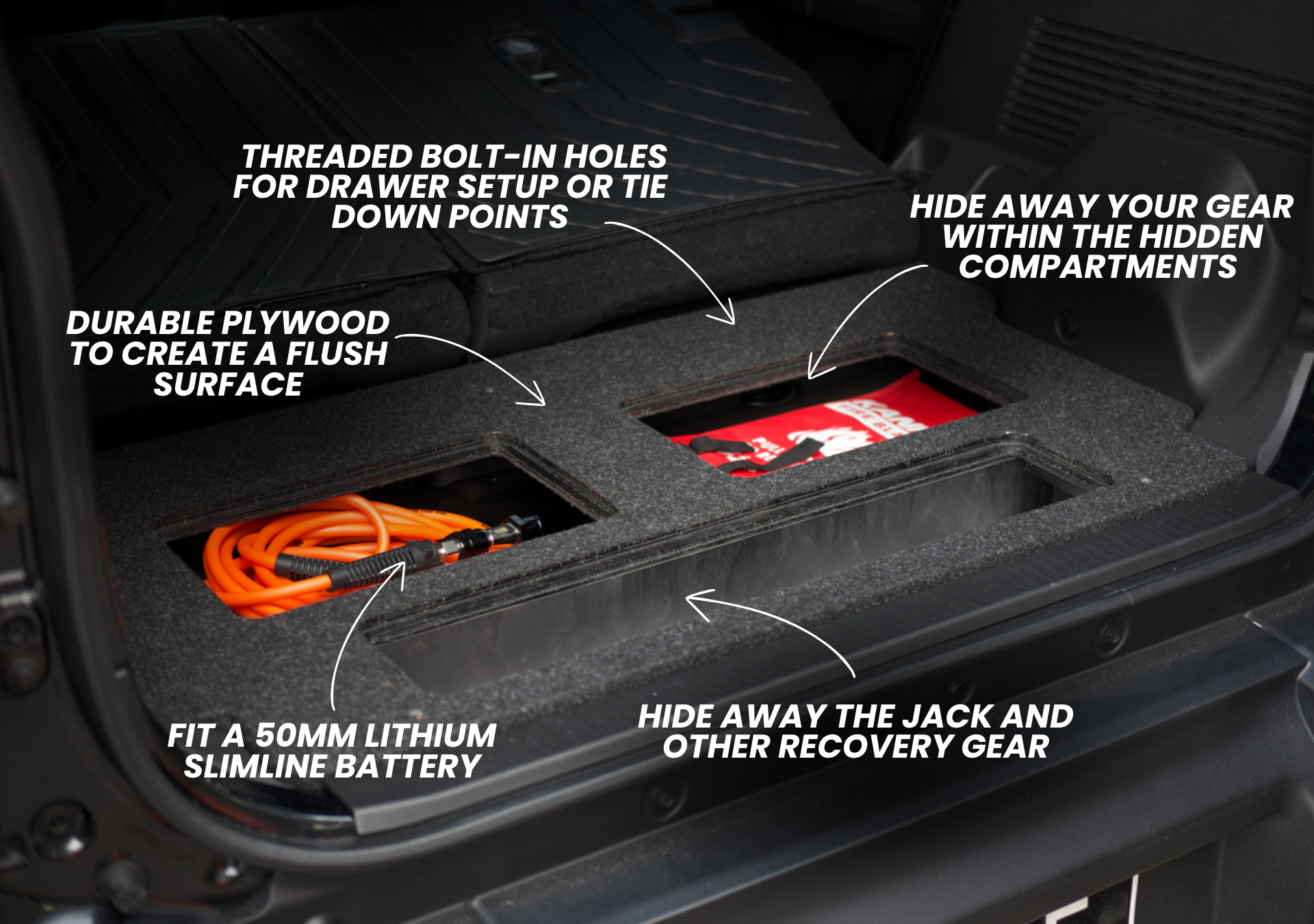

• False floor functionality: Creates a level base and houses optional slimline lithium batteries under the deck*.

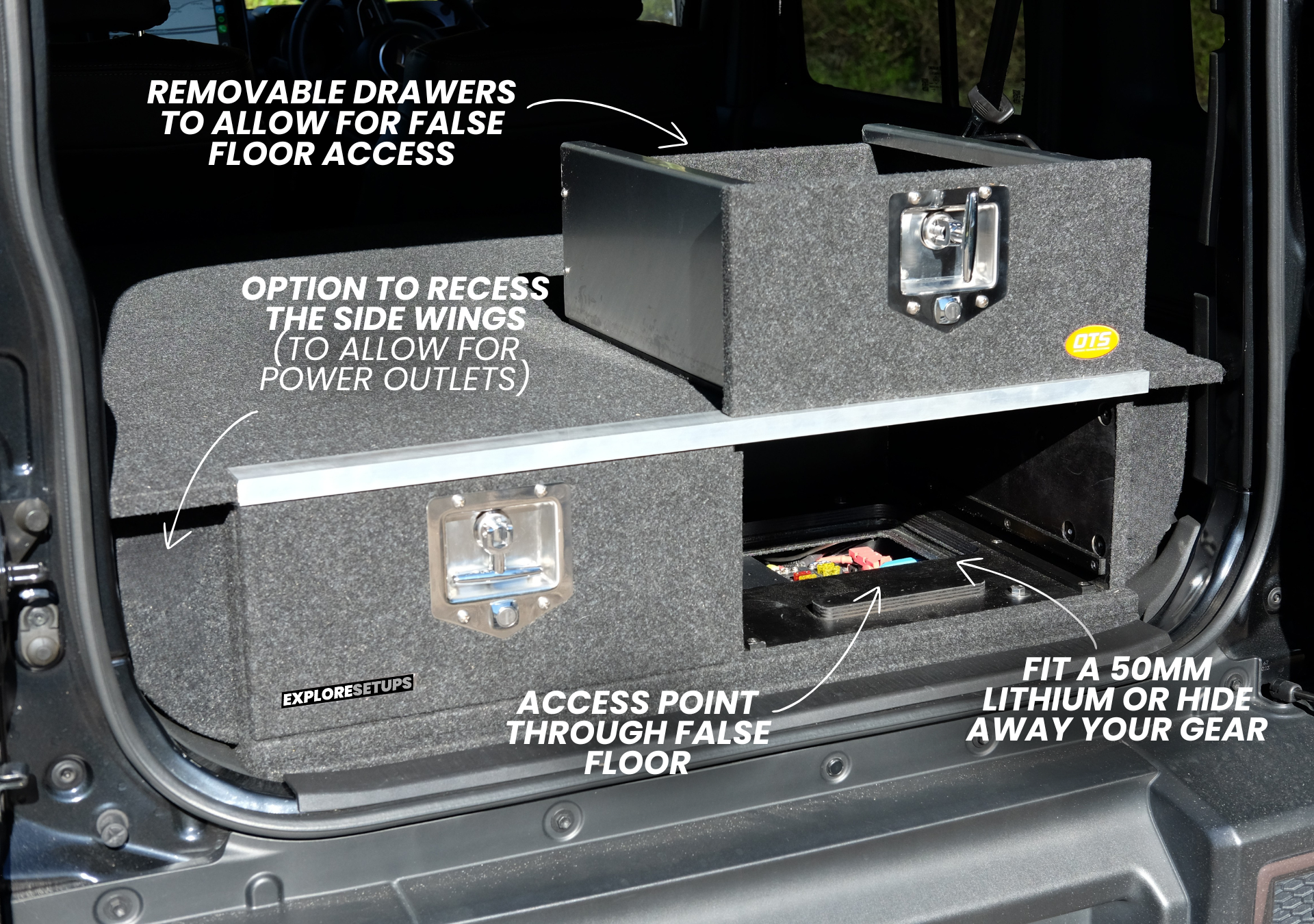

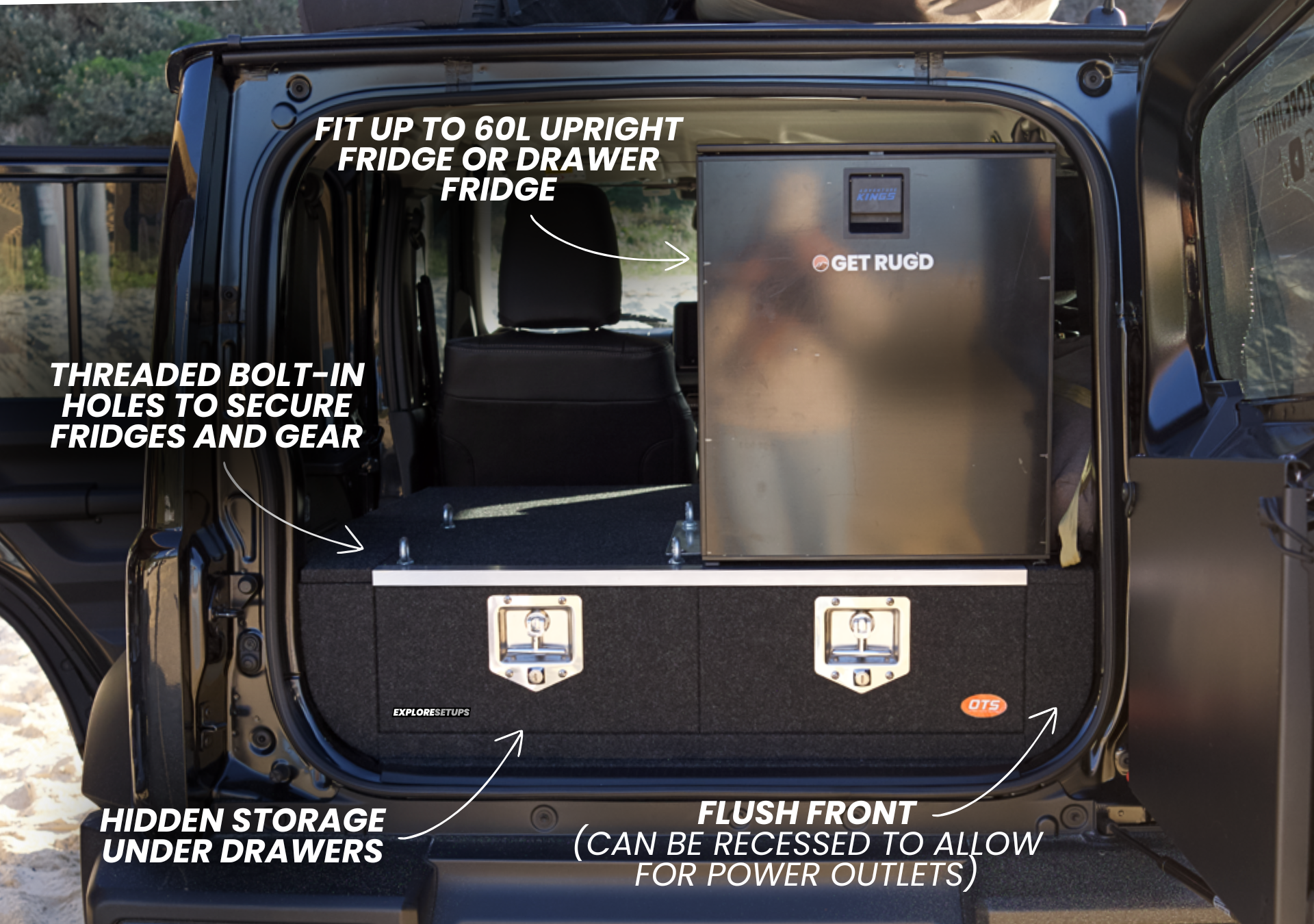

• Recessed side wings: Adding some power outlets in the future? You can recess the sides which will allow you to charge while driving and keeping the rear door closed.

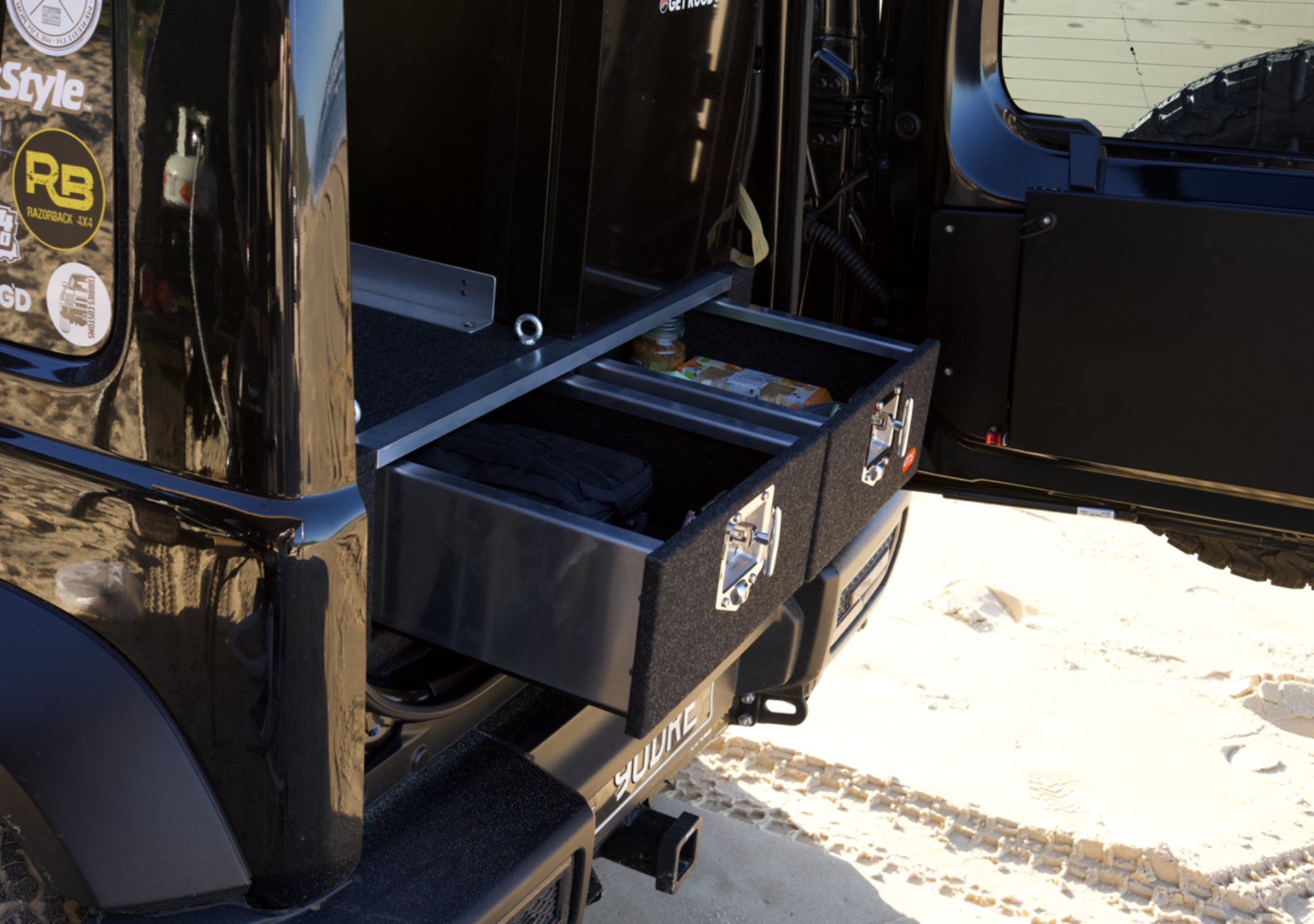

• Secure drawer access: Two drawers with 75% extension, smooth polyethylene slides, and lockable stainless latches.

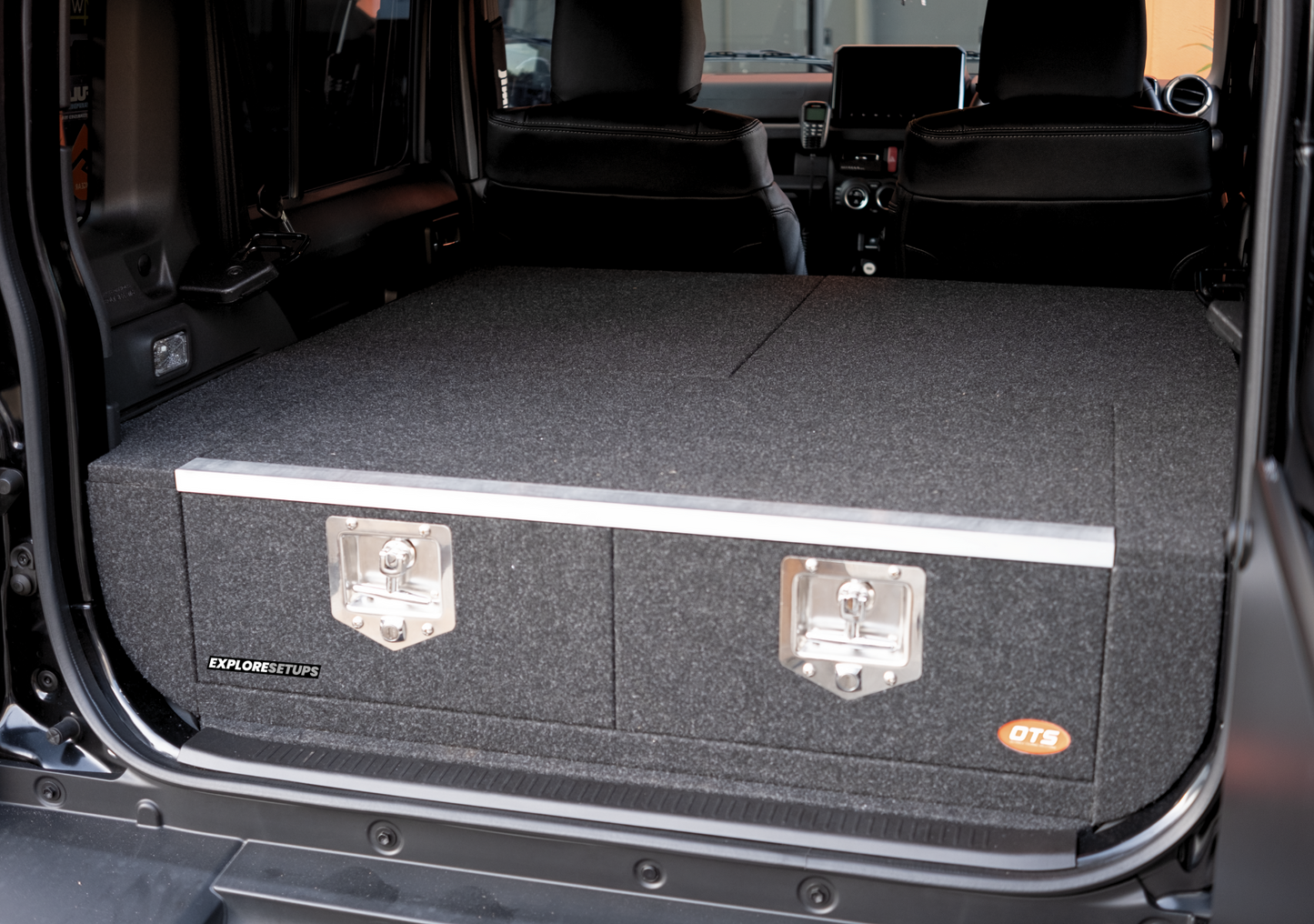

• Clean, flat finish: Wing kit and half seat platform create a full-length, seamless platform across the rear cabin.
• Modular rear platform: Option to retain one rear seat or run full platform depending on your layout needs.
• Heavy-duty materials: 15mm plywood construction and charcoal marine-grade carpet throughout for strength, durability and a rattle-free ride.
• Lightweight and tough: Total combined weight approx. 32kg, designed to handle the rough stuff without overloading your Jimny.

*This system does not feature a battery or fridge system. To purchase the complete system + Cangoee 110Ah Slimline Lithium battery, see this product page.

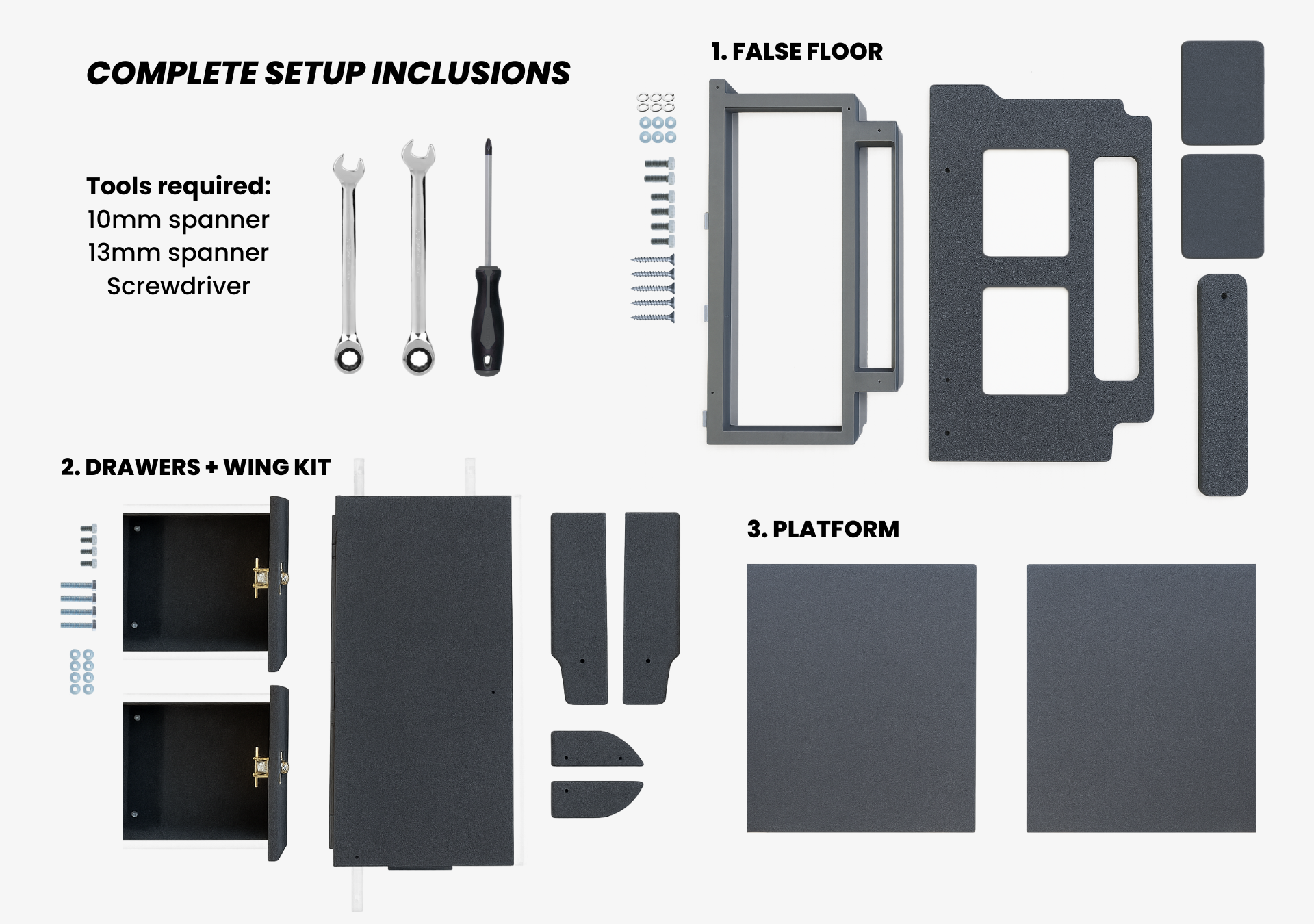

1 x Jimny 5-Door False Floor

• 15mm plywood with access hatch and removable tie-down points
• Bolts to existing holes – no drilling required
• Approx. 7kg

1 x 2-Drawer System

• Dual polyethylene slide drawers (75% extension)
• Lockable stainless steel latches, aluminium front edge strip
• Heavy-duty charcoal carpet finish
• Approx. 20kg

1 x Wing Kit

• Removable side wings and fixed wing faces
• Approx. 3kg

1 x Half Seat Platform

• 15mm plywood, carpeted to match
• Bolts to rear drawer system
• Approx. 2kg

Supply only. Easy 20-30 minute installation, and installation manual included.

Drawer system measurements (without platform):

• Drawer width inside: 360mm
• Drawer length inside: 380mm
• Drawer depth: 160mm
• Drawer pull out depth: 315mm
• Overall width: 1110mm
• Overall length: 460mm
• Overall height: 250mm


Drawer system measurements (with platform):

• Length: 1165mm
• Width: 1110mm
• Height: 250mm


Inside drawer measurements:

• Width inside: 360mm
• Length inside: 380mm
• Depth: 160mm
• Pull out depth: 315mm

Wing kit measurements:

• Length: 460mm
• Depth (widest part): 140mm
• Height: 250mm

Half platform measurements:

• Half platform width: 555mm
• Half platform length: 705mm

Full platform measurements:

• Full platform width: 1110mm
• Full platform length when attached to drawers: 1165mm

Weight: 23kg
Materials: Durable 15mm plywood with heavy duty charcoal carpet finish and drawers on polyethylene slides.

The product is made to order and lead time is 3-4 weeks*. After placing your order, you will have 48 hours to modify/cancel your order before it goes into manufacturing. Once it is placed under manufacturing, the order is non-refundable.

We provide flat-rate shipping $150 in Australia or pickup from OTS in Bells Creek, QLD 4551. We also provide flat-rate shipping to New Zealand for $400. For other international destinations, please email exploresetups@outlook.com for a customised quote.⌃

The item(s) are made on-site in Bells Creek, QLD 4551 and can be installed there free of charge upon pick-up.

*This delivery timeframe may change depending on order influx.

⌃You will need to consider potential import taxes within your country before ordering.

Warranty of the product is covered by Outback Touring Solutions (OTS). For warranty enquiries or any questions about your product, please email exploresetups@outlook.com in the first instance.
