Drawer System and Wing Kit (Part 2 of 3) suitable for Jimny XL 5-Door
Drawer System and Wing Kit (Part 2 of 3) suitable for Jimny XL 5-Door

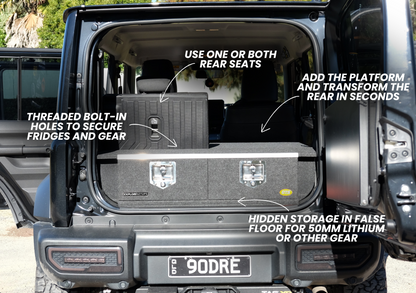

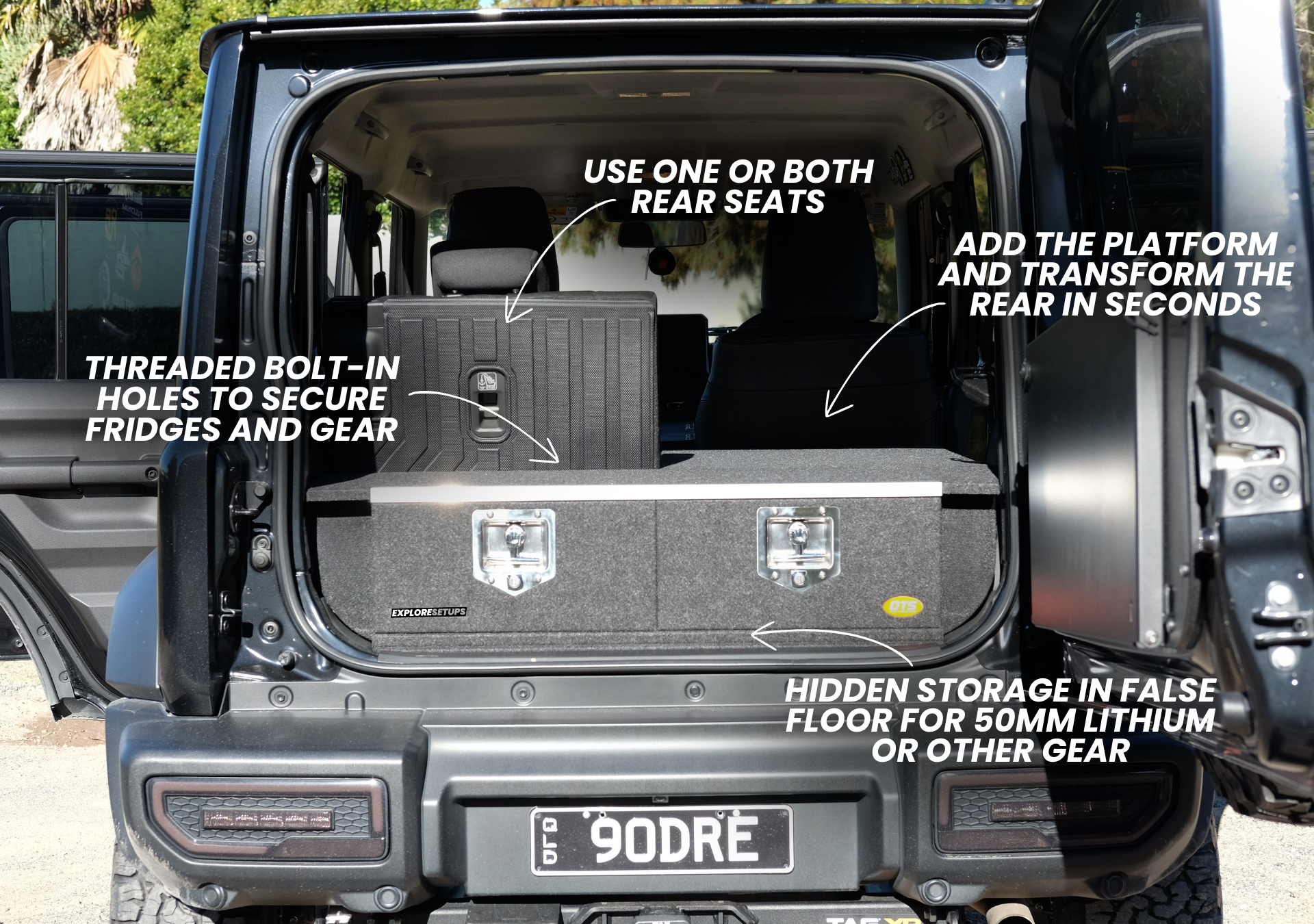

This dual drawer system for the Suzuki Jimny XL includes lockable stainless latches, durable automotive carpet, and smooth-sliding polyethylene runners. The removable recessed wing kit completes the setup with a flat, seamless surface—ideal for maximising your rear storage space.
PLEASE NOTE: This drawer system requires the Jimny XL 5-Door False Floor to ensure proper fitment and secure bolting.
Couldn't load pickup availability
Collapsible content
Product description
The ultimate storage solution for your Jimny XL 5-door. This dual drawer system is designed to handle everyday gear or full touring setups, with smooth-sliding polyethylene runners, lockable stainless steel latches, and a durable charcoal carpet finish that looks right at home in the Jimny XL.

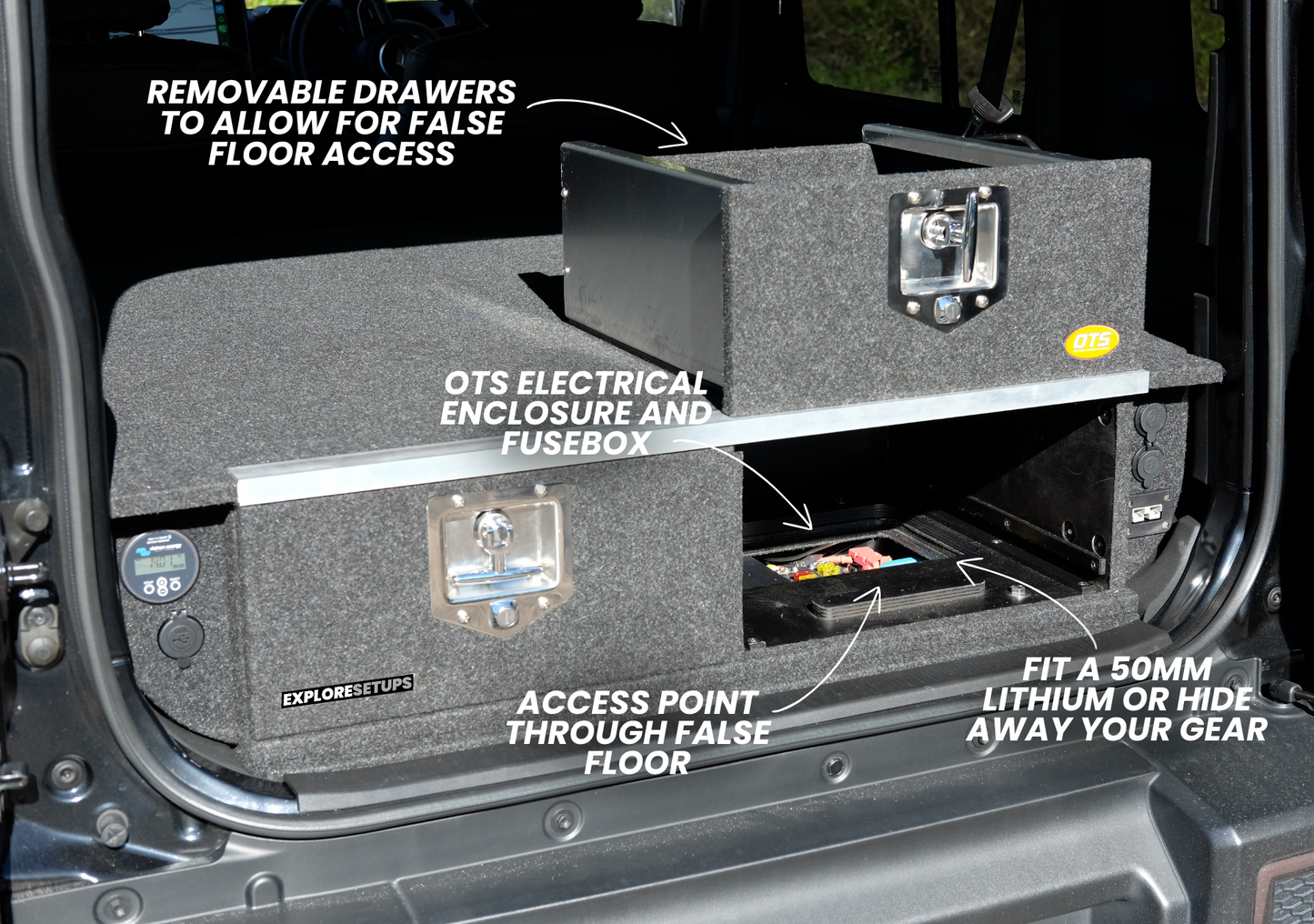

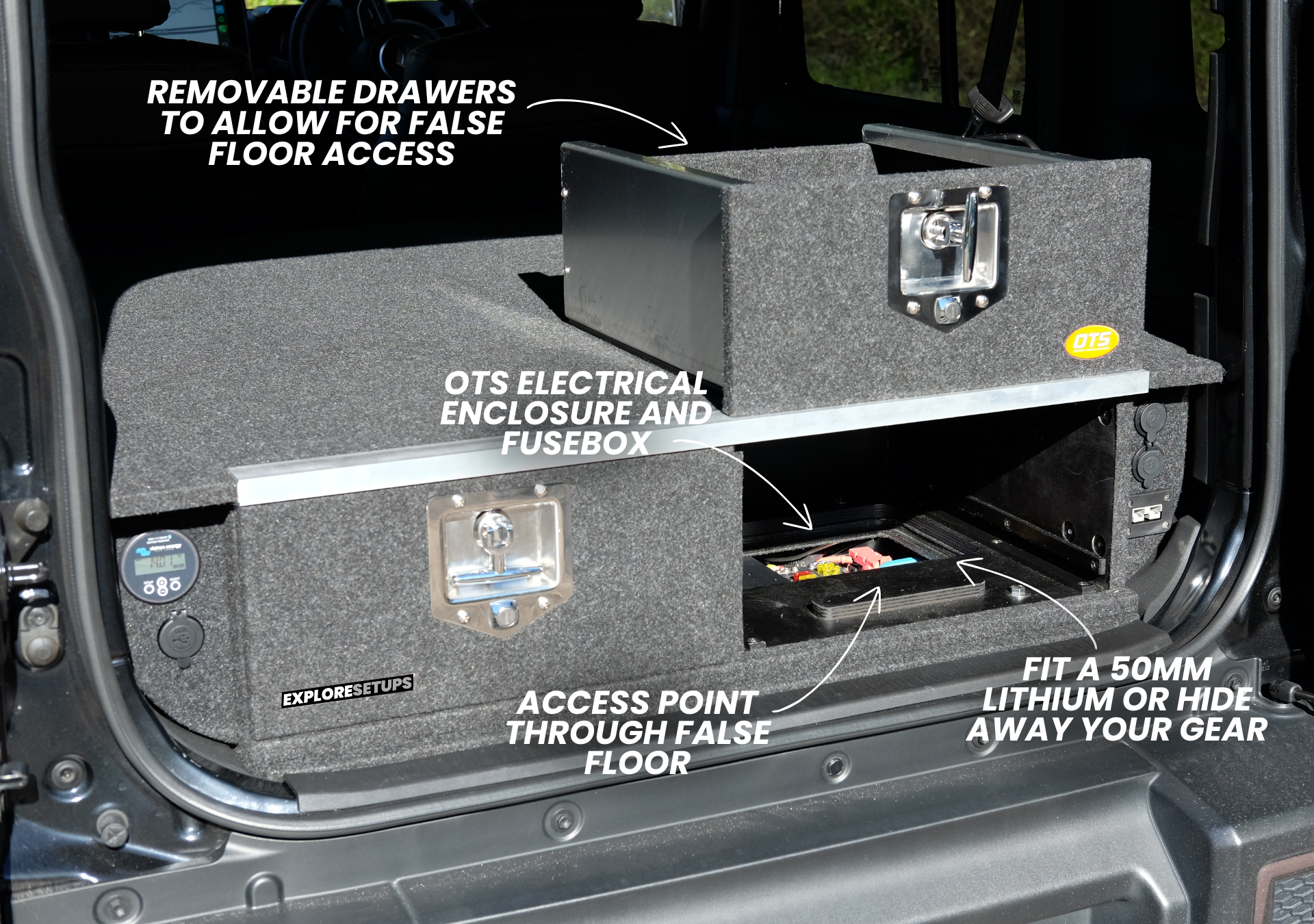

The included wing kit finishes the setup with removable side panels and fixed wing faces, giving you a clean, flat platform while still allowing access to space around the wheel arches.
Designed by a Jimny owner, for Jimny owners.
Please note: This system requires the Jimny XL False Floor for correct fitment and secure bolting.
Total system weight approx. 23kg.
Key features
- Made for the Jimny XL: Bolts straight into the Jimny XL False Floor using existing mount points—no cutting, no hassle.

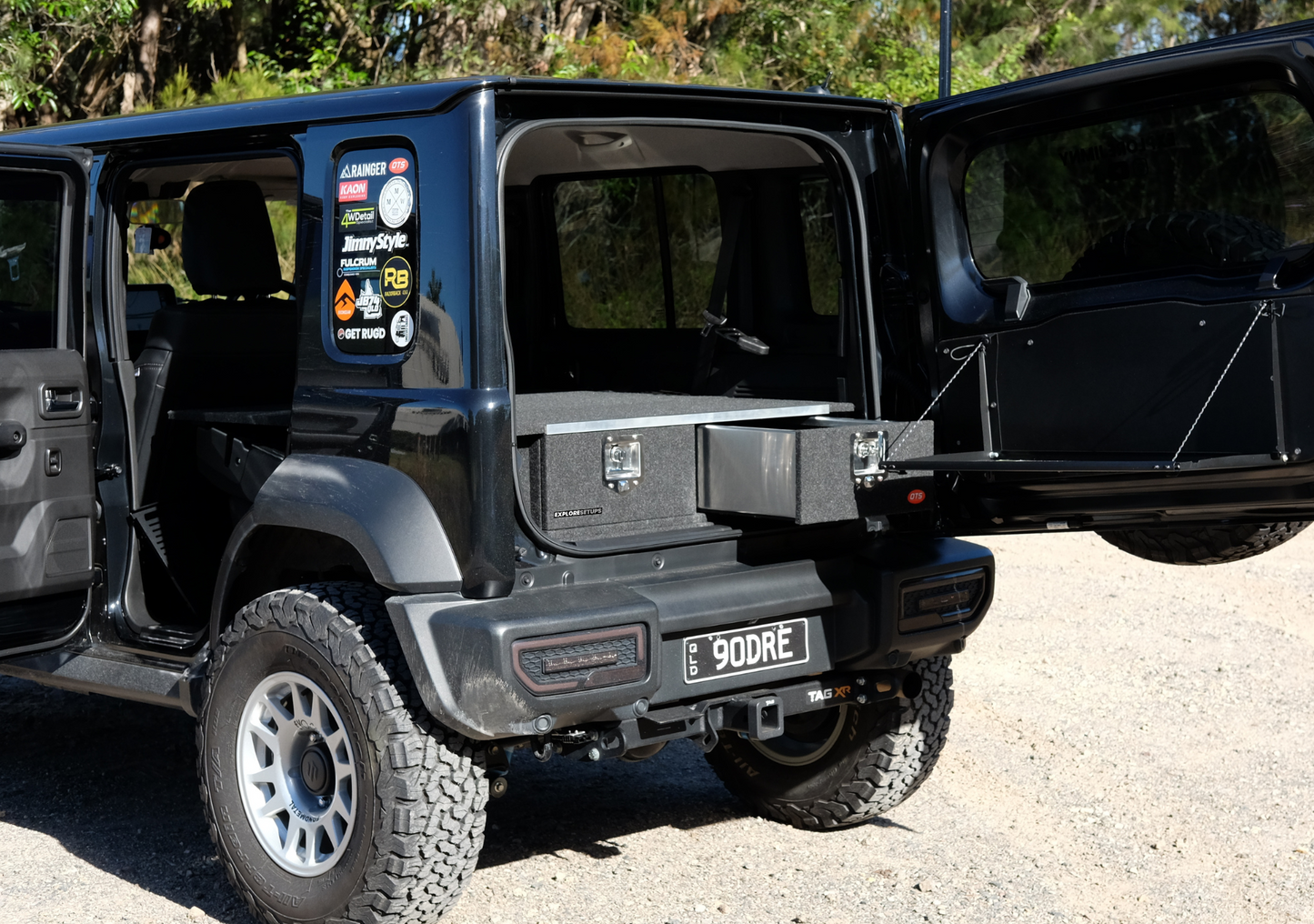

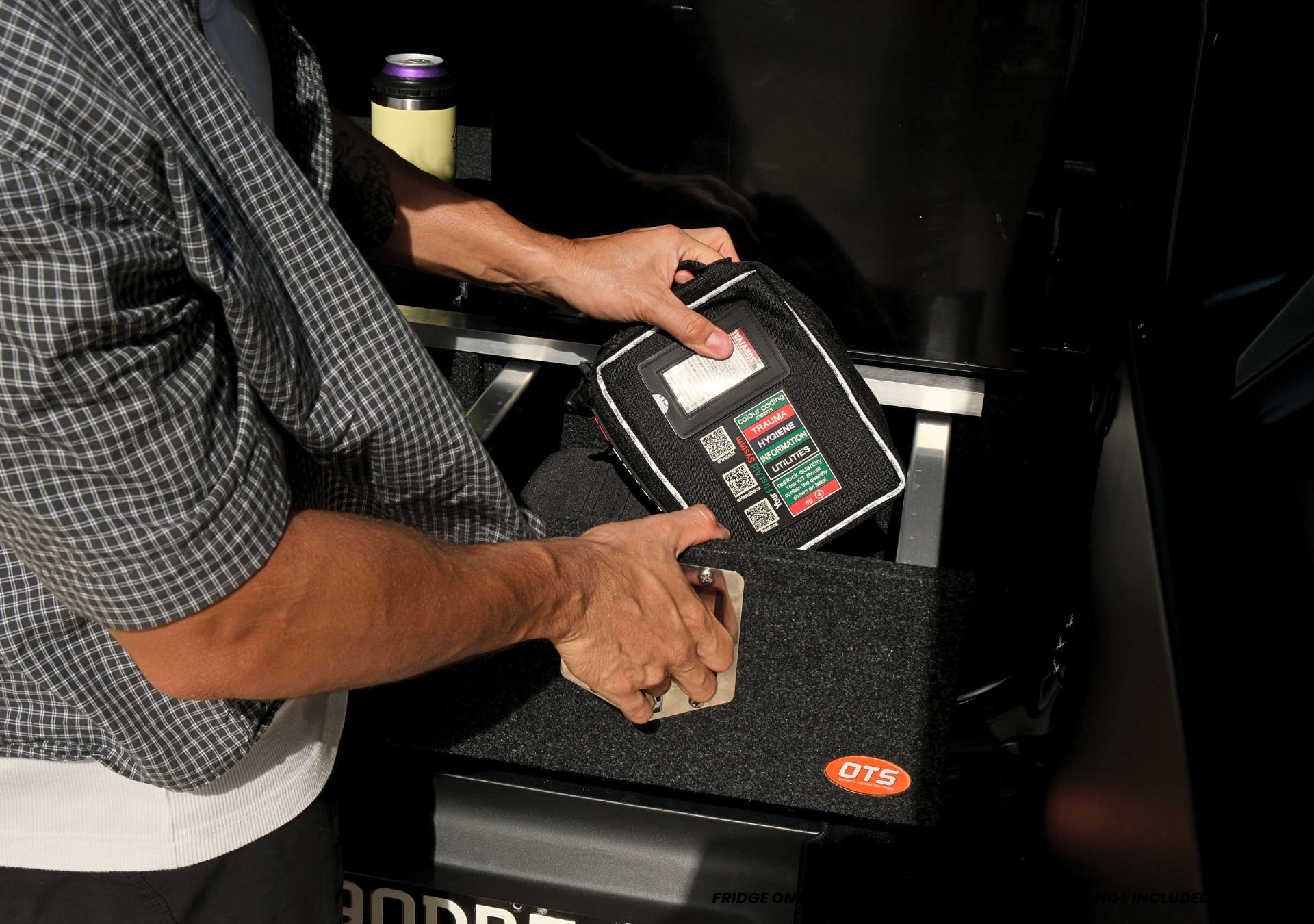

- Two heavy-duty drawers on polyethylene slides with approx. 75% extension for easy access.
- Stainless steel drop T latches: Keep your gear safe and rattle-free on or off-road.
- Removable top wings: Fixed wing faces provide a flat, seamless platform over the rear.

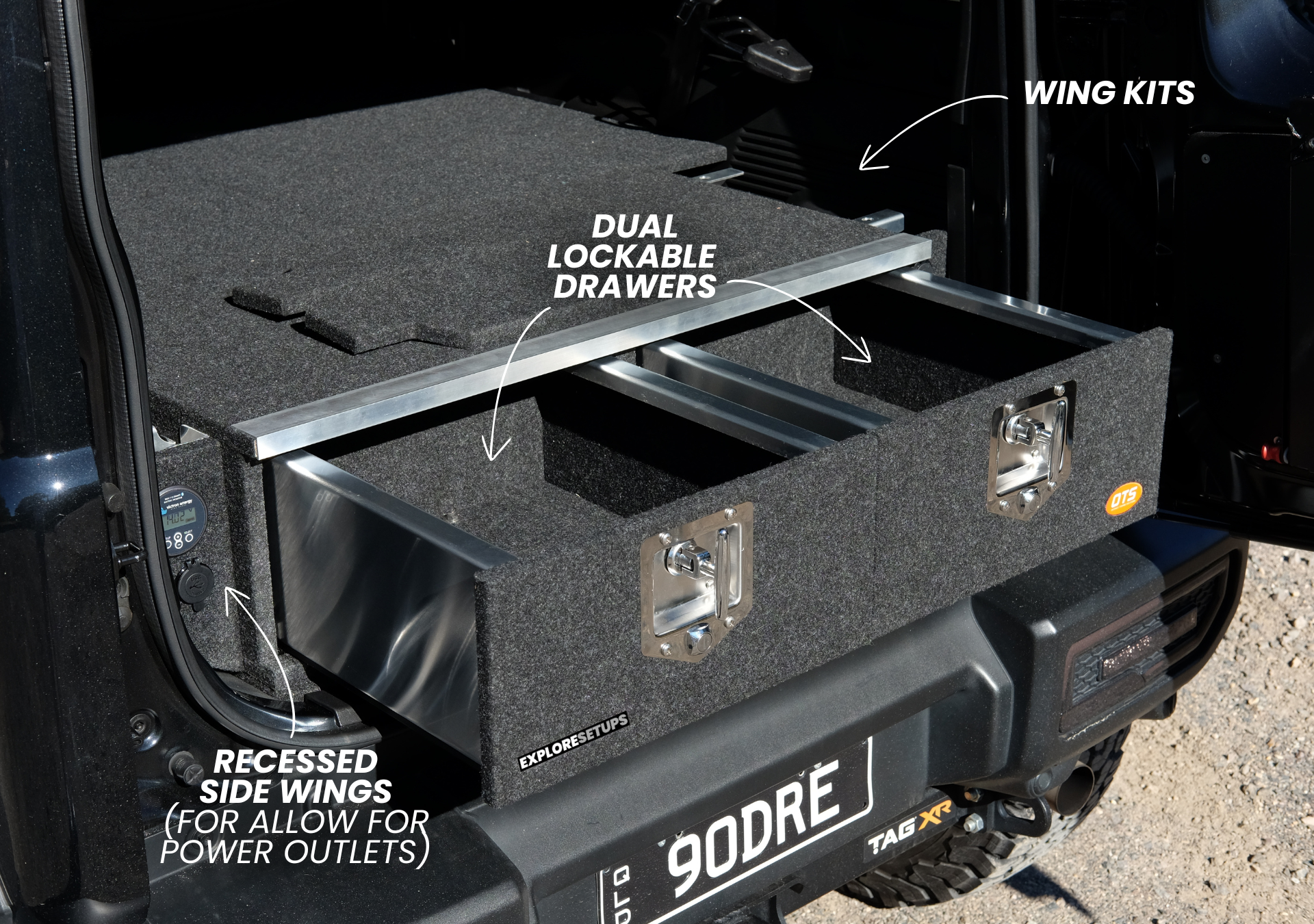

- Recessed side wings: Adding some power outlets in the future? You can recess the sides which will allow you to charge while driving and keeping the rear door closed.
- Tough charcoal carpet with front aluminium protection strip stands up to hard use.
- 4 integrated tie-down points to secure your load.
- Weighs just 23kg combined, so it won’t overload your setup.
Please note: Requires the Jimny XL False Floor to ensure proper fitment and secure bolting.

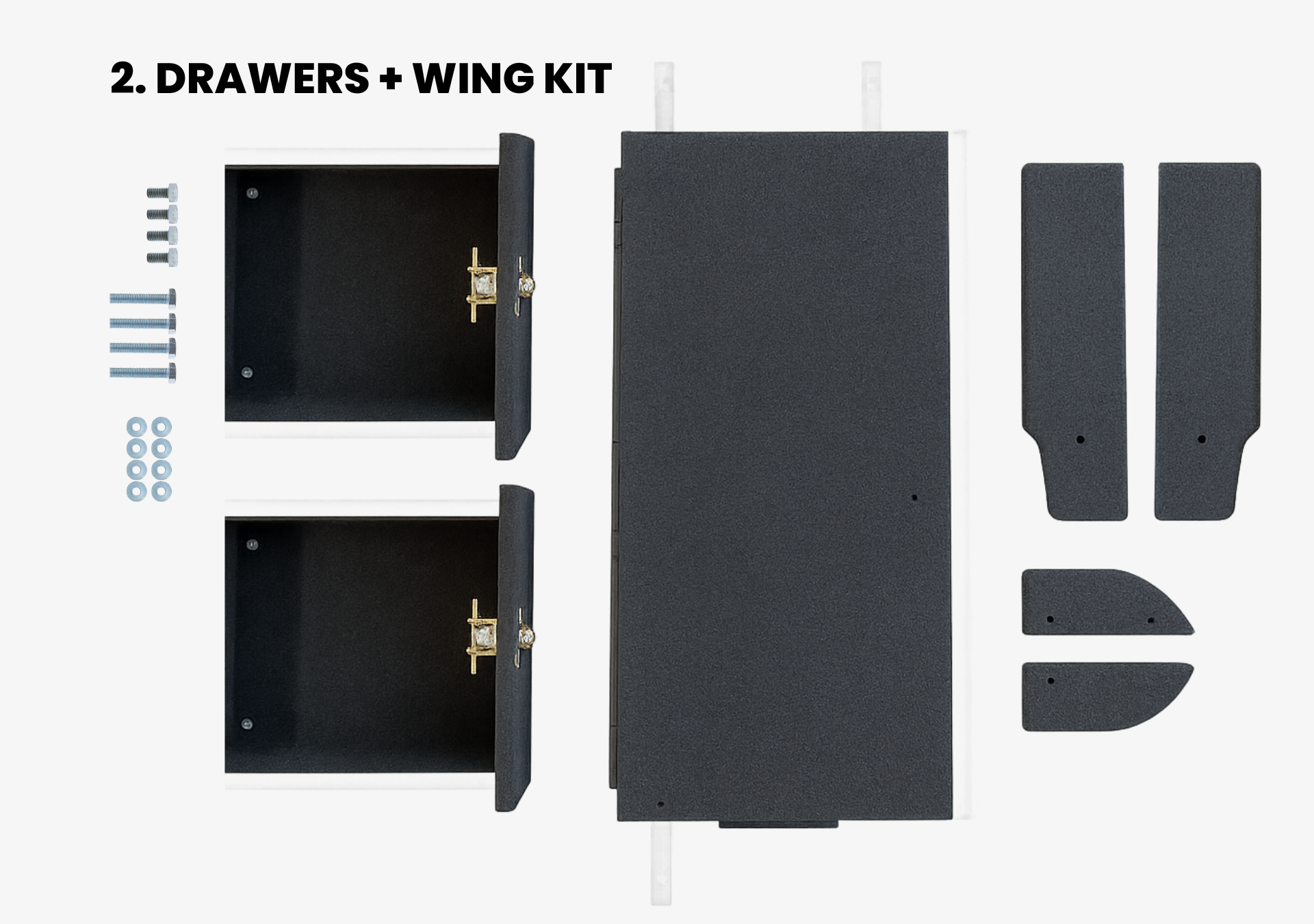

Inclusions
- 2 x Drawers on polyethylene slides providing approximately 75%
extension - Lockable stainless steel drop T latch
- Heavy duty carpet – charcoal
- Aluminium protection strip on front edge
- 4 x Tie down points
- Removeable side wings, fixed wing faces
Supply only. Easy 15-20 minute installation, and installation manual included.
Please note: Requires the Jimny XL False Floor to ensure proper fitment and secure bolting.
Dimensions
Drawer system measurements (without platform):
- Drawer width inside: 360mm
- Drawer length inside: 380mm
- Drawer depth: 160mm
- Drawer pull out depth: 315mm
- Overall width: 1110mm
- Overall length: 460mm
- Overall height: 250mm
Inside drawer measurements:
- Width inside: 360mm
- Length inside: 380mm
- Depth: 160mm
- Pull out depth: 315mm
Wing kit measurements:
- Length: 460mm
- Depth (widest part): 140mm
- Height: 250mm
Weight: 23kg
Materials: Durable 15mm plywood with heavy duty charcoal carpet finish and drawers on polyethylene slides.
Shipping
The product is made to order and lead time is 3-4 weeks*. After placing your order, you will have 48 hours to modify/cancel your order before it goes into manufacturing. Once it is placed under manufacturing, the order is non-refundable.
We provide flat-rate shipping $150 in Australia or pickup from OTS in Bells Creek, QLD 4551. We also provide flat-rate shipping to New Zealand for $400. For other international destinations, please email explorejimny@hotmail.com for a customised quote.⌃
The item(s) are made on-site in Bells Creek, QLD 4551 and can be installed there free of charge upon pick-up.
*This delivery timeframe may change depending on order influx.
⌃You will need to consider potential import taxes within your country before ordering.
Warranty
Warranty of the product is covered by Outback Touring Solutions (OTS). For warranty enquiries or any questions about your product, please email exploresetups@outlook.com in the first instance.
- Drop-in fit – bolts into the False Floor using factory mount points
- Dual drawers – heavy-duty, 75% extension, no rattle latches
- Flat, secure platform – side wings + tie-downs + 23kg combined weight
