Complete Storage Setup + Power suitable for Jimny XL 5-Door

This is your full turn-key setup for the Jimny 5-door XL—combining our full rear platform and storage system with a professionally pre-wired lithium power solution to get you off-grid with confidence.

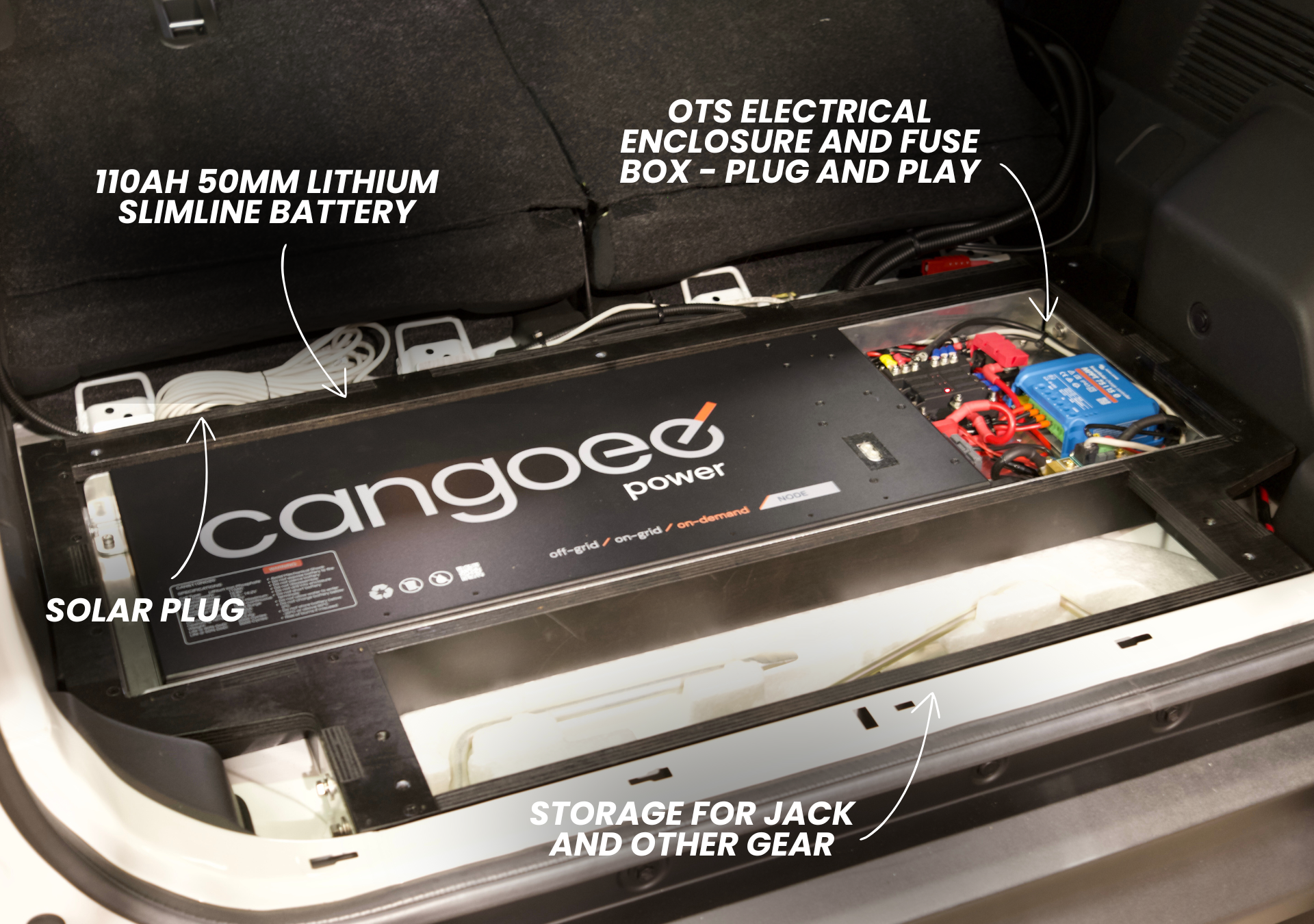

At the core is the Cangoee 110Ah Slimline Lithium battery with an inbuilt 20A DC-DC charger, tucked neatly beneath the false floor and fully integrated into the layout. It's paired with Victron’s 75/15 MPPT solar controller and Bluetooth display, giving you live system monitoring via app or screen.

Power is distributed through a clean and compact OTS electrical enclosure, complete with a 6-way fuse box, dual USB and accessory outlets, and Anderson connectors for high-draw gear or solar input. A dedicated Blue Anderson plug is mounted externally on the tow bar for plug-and-play solar connection.

The rear layout remains completely modular with drawers for secure storage, a flat platform for gear or sleeping, and wing kit that finishes the system cleanly while still allowing hidden storage access. Whether you're hitting long-haul touring routes or powering a fridge, lights, and devices for weekends away—this kit is the complete fit-out, ready to go, with no cutting, drilling, or guesswork required.

Designed by a Jimny owner, for Jimny owners.

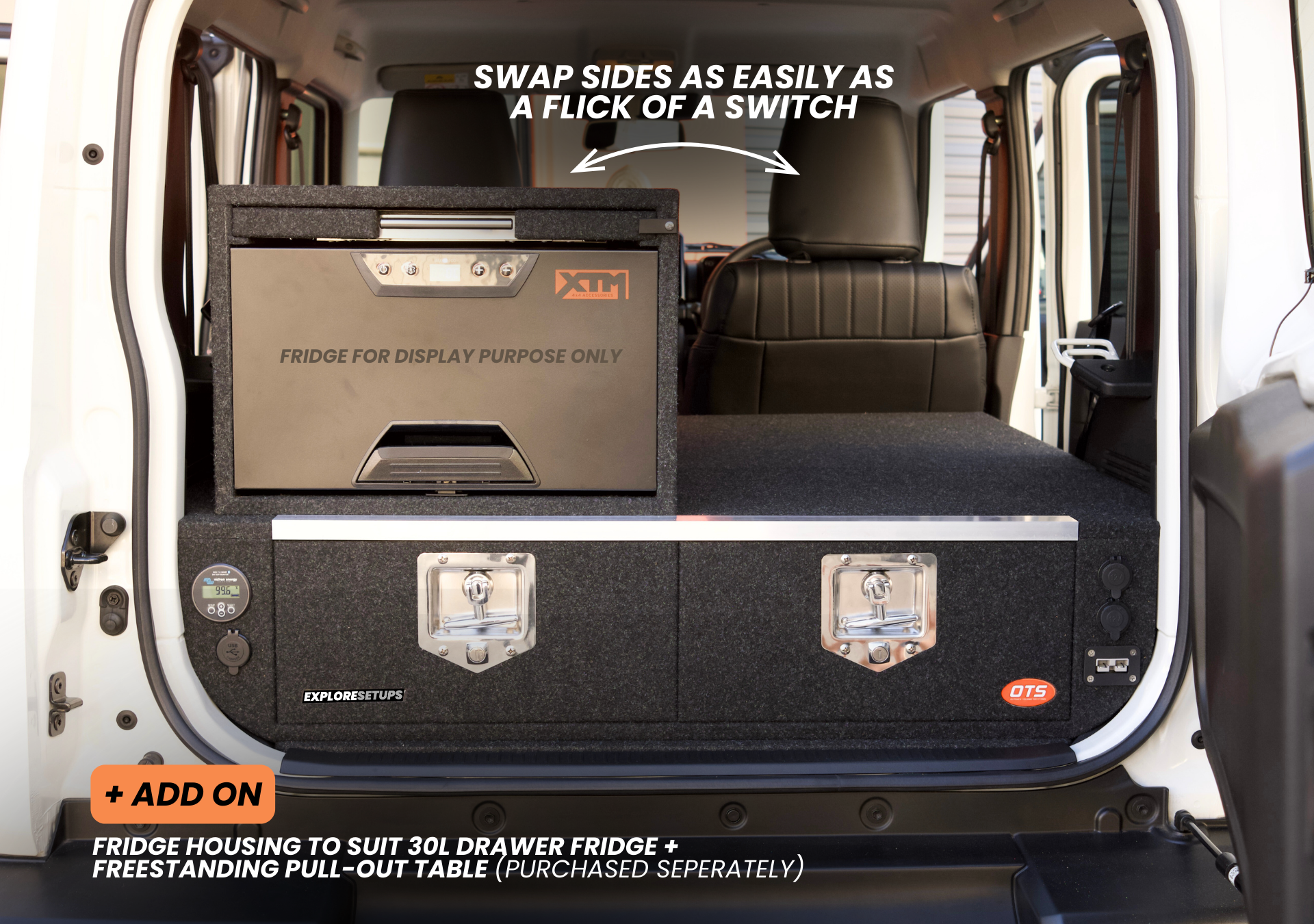

*Fridge for display purposes only.

First time installation: The first time installing the power system, you'll need to run the provided main cable underneath your Jimny and through to the main battery to allow for the lithium to charge. You will also need to run a second cable to where your solar input will be added underneath your bumper. Video instructions provided (approx. 30 min).

• Full integrated system: Storage + platform + power — built to work together as one complete setup.
• Power: Cangoee 110Ah Slimline Lithium with built-in 20A DC-DC charger for easy, efficient vehicle charging.
• Victron 75/15 MPPT controller: Solar ready, Bluetooth-connected for live system data.

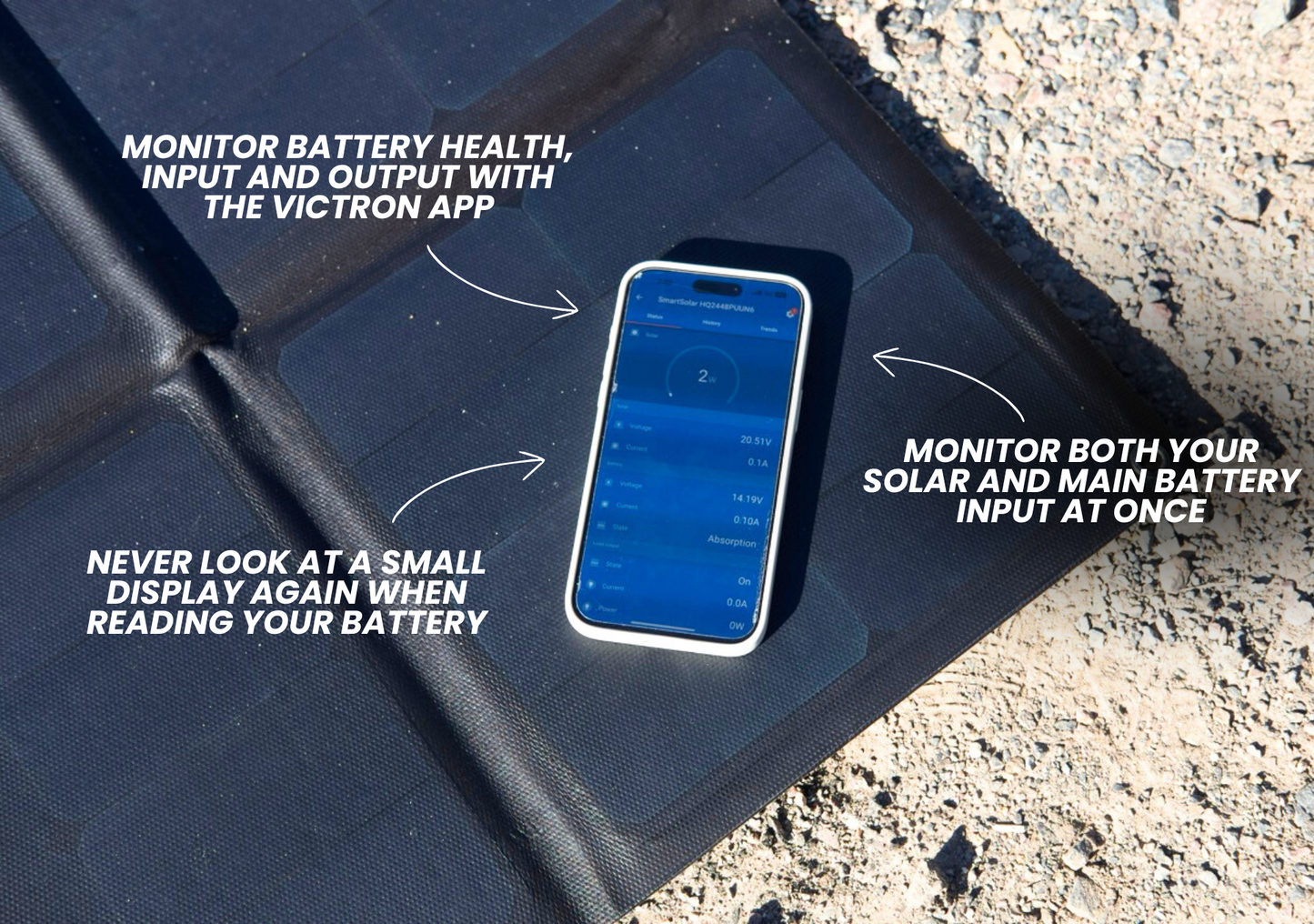

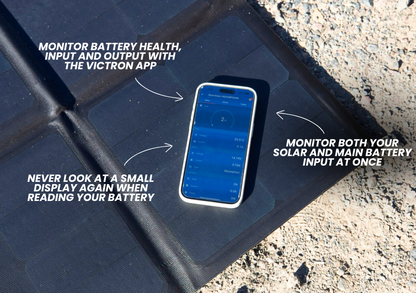

• Victron BMV Display: View your battery status from inside your cabin or via the app.

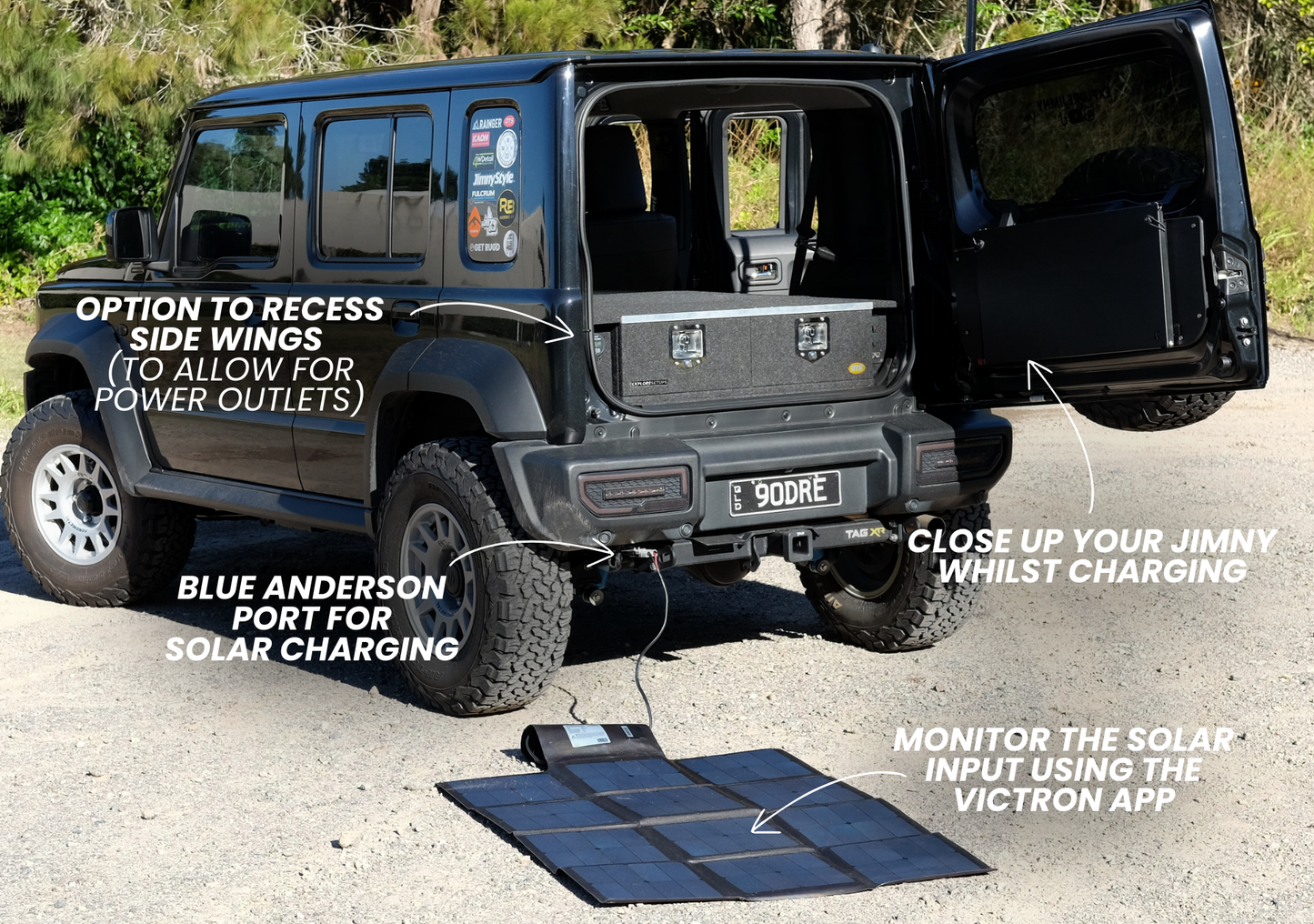

• Solar-ready setup: Blue Anderson port pre-mounted on tow bar for quick-connect solar panels.
• Complete wiring system: Pre-wired OTS electrical enclosure with fuse box, Anderson plugs, 12V and USB outputs.

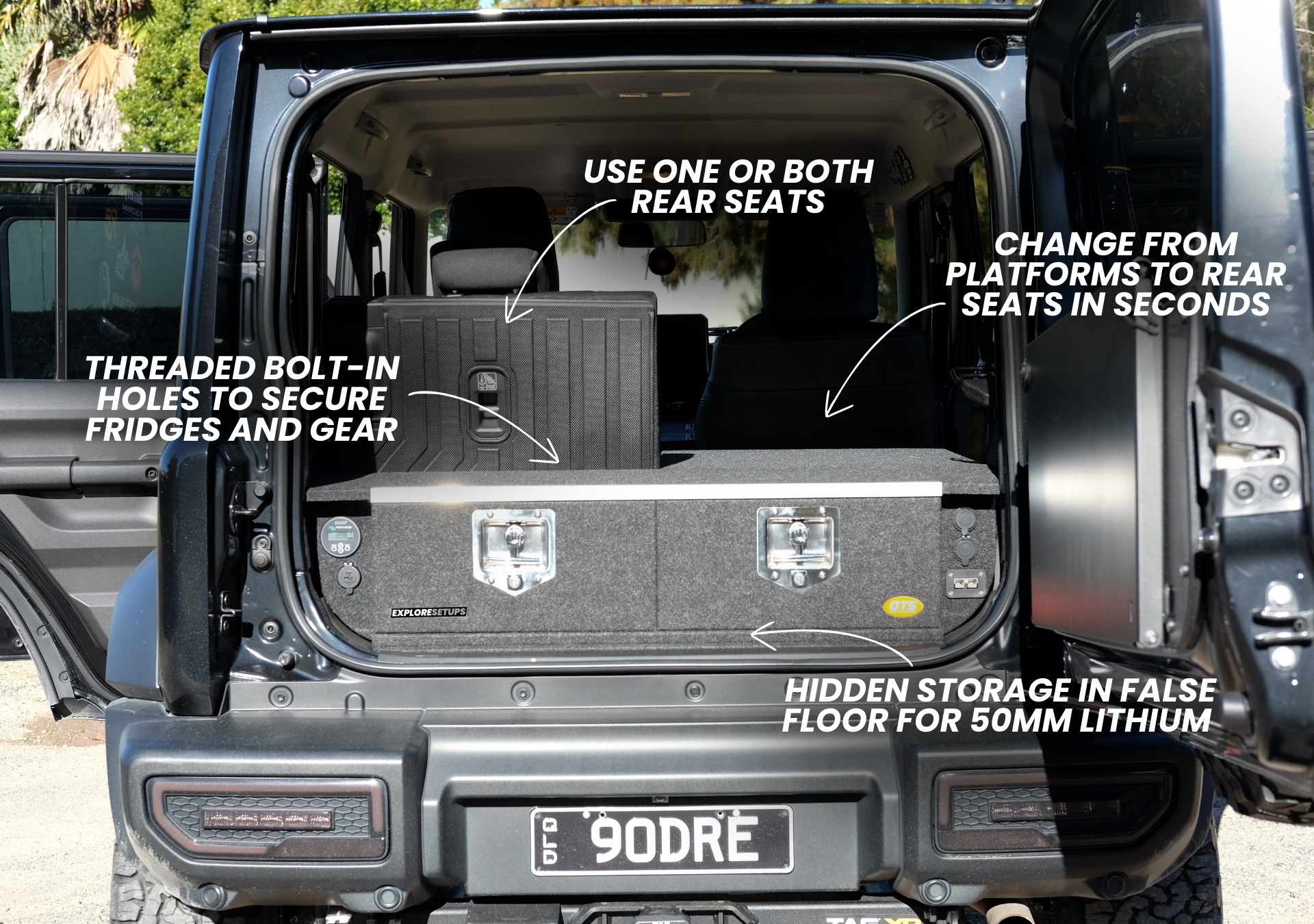

• Custom false floor: Strong 15mm plywood with hidden battery space and tie-down points.

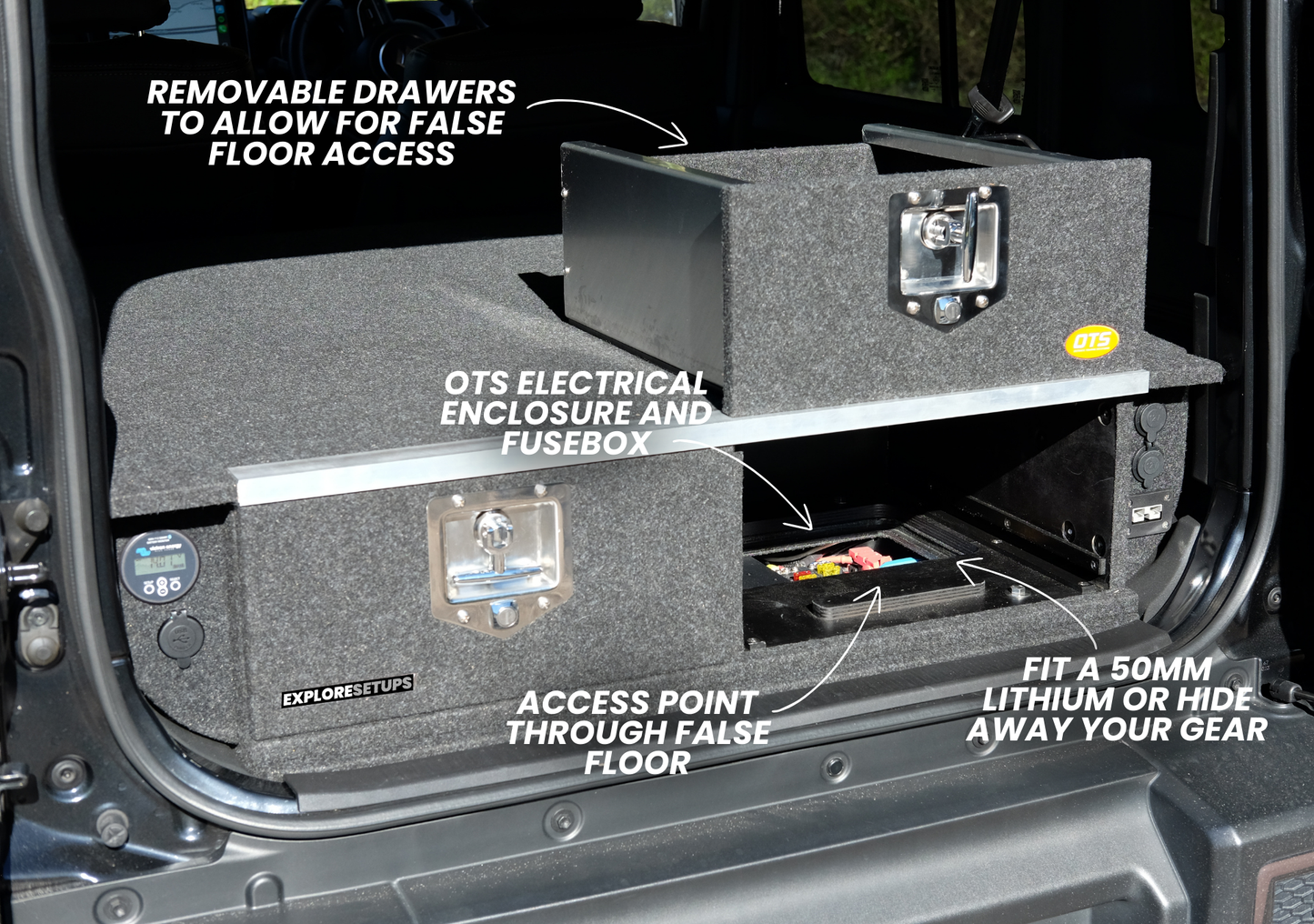

• Modular drawer setup: Twin lockable drawers, aluminium edge protection, and removable wing kit for seamless finish.

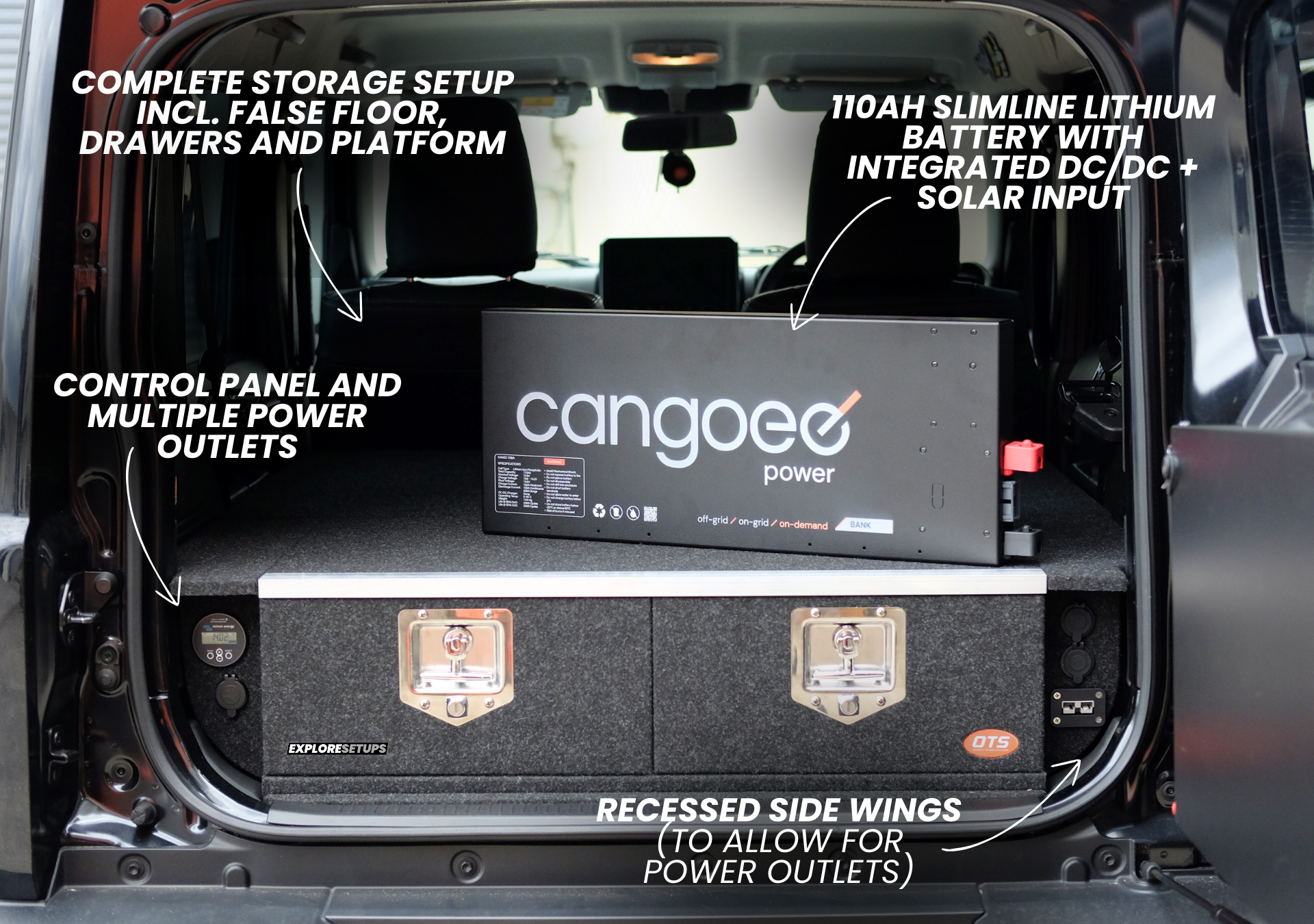

• Recessed side wings: This recess will allow you to charge while driving and prevent cables from crashing into your rear door when closed. You can move the recess forward if you prefer a flush finish.

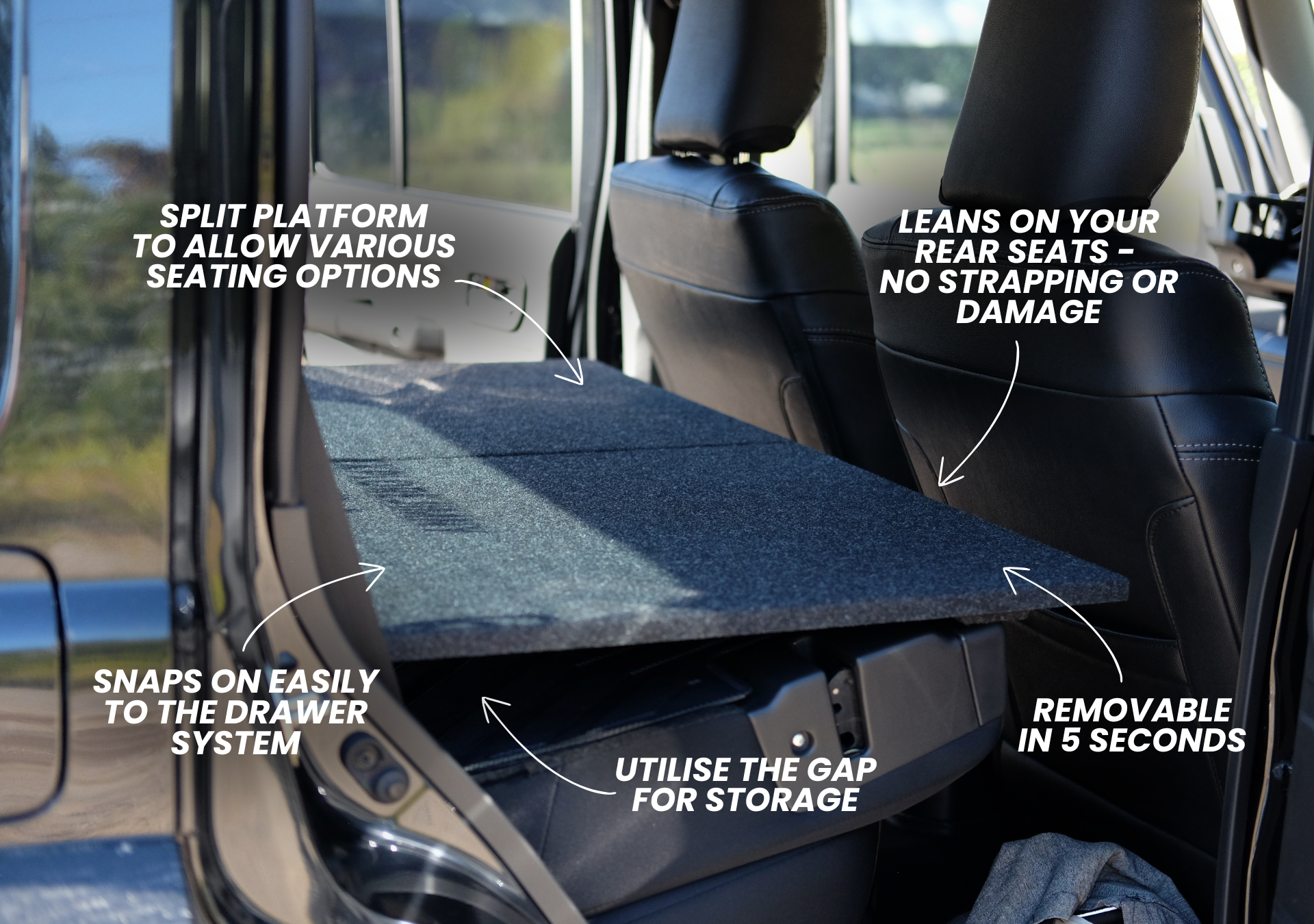

• Half seat platform: Extend your layout fully or keep a rear seat — flexible to your needs.
• Designed for Jimny XL 5-door (JC74): Built to factory specs — bolt-in installation using existing mounting points.


1 x Jimny 5-Door False Floor

• 15mm plywood with access hatch and removable tie-down points
• Bolts to existing holes – no drilling required
• Approx. 7kg

1 x 2-Drawer System

• Dual polyethylene slide drawers (75% extension)
• Lockable stainless steel latches, aluminium front edge strip
• Heavy-duty charcoal carpet finish
• Approx. 20kg

1 x Wing Kit

• Removable side wings and fixed wing faces
• Approx. 3kg

1 x Half Seat Platform

• 15mm plywood, carpeted to match
• Bolts to rear drawer system
• Approx. 2kg

Electrical & Power System

• Cangoee 110Ah Slimline Lithium Battery (with built-in 20A DC-DC)
• Victron MPPT 75/15 Solar Controller with Bluetooth
• Victron Bluetooth Display
• OTS Electrical Enclosure
• 6-Way Fuse Box
• 1 x 50A Anderson Socket (Input or Output)
• 1 x Blue Anderson Solar Input (Mounted on Tow Bar - optional)
• 2 x Accessory Outlets
• 1 x Dual USB (3.0) + 1 x USB PD (USB-C)

This is a plug-and-play system that comes pre-wired. Easy 20 minute installation, and installation manual included.

First time installation: The first time installing the power system, you'll need to run the provided main cable underneath your Jimny and through to the main battery to allow for the lithium to charge. You will also need to run a second cable to where your solar input will be added underneath your bumper. Video instructions provided (approx. 30 min).

Drawer system measurements (without platform):

• Drawer width inside: 360mm
• Drawer length inside: 380mm
• Drawer depth: 160mm
• Drawer pull out depth: 315mm
• Overall width: 1110mm
• Overall length: 460mm
• Overall height: 250mm


Drawer system measurements (with platform):

• Length: 1165mm
• Width: 1110mm
• Height: 250mm


Inside drawer measurements:

• Width inside: 360mm
• Length inside: 380mm
• Depth: 160mm
• Pull out depth: 315mm

Wing kit measurements:

• Length: 460mm
• Depth (widest part): 140mm
• Height: 250mm

Half platform measurements:

• Half platform width: 555mm
• Half platform length: 705mm

Full platform measurements:

• Full platform width: 1110mm
• Full platform length when attached to drawers: 1165mm

Weight: 23kg
Materials: Durable 15mm plywood with heavy duty charcoal carpet finish and drawers on polyethylene slides.

The product is made to order and lead time is 3-4 weeks*. After placing your order, you will have 48 hours to modify/cancel your order before it goes into manufacturing. Once it is placed under manufacturing, the order is non-refundable.

We provide flat-rate shipping $150 in Australia or pickup from OTS in Bells Creek, QLD 4551. We also provide flat-rate shipping to New Zealand for $400. For other international destinations, please email exploresetups@outlook.com for a customised quote.⌃

The item(s) are made on-site in Bells Creek, QLD 4551 and can be installed there free of charge upon pick-up.

*This delivery timeframe may change depending on order influx.

⌃You will need to consider potential import taxes within your country before ordering.

Warranty of the product is covered by Outback Touring Solutions (OTS). For warranty enquiries or any questions about your product, please email exploresetups@outlook.com in the first instance.
